CONCEPTS

These are 3D computer models for the visualization of future machines
3D models by Michael Sanchez
visit: http://www.ChildrenOfTheWind.net
e-mail: mikesa1971@AOL.com

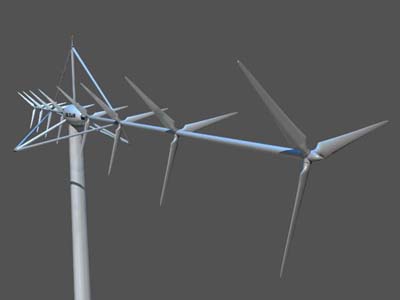

Large scale 8-rotor model in the Mega watt region

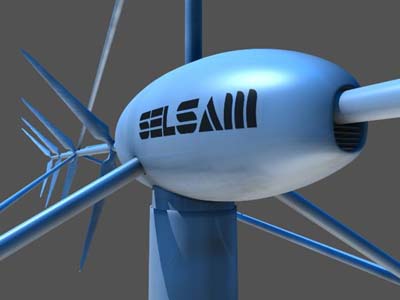

Large scale 8-rotor model showing generator housing
Safety 1st. We highly discourage service technicians from
working at generator height while the shaft is turning.

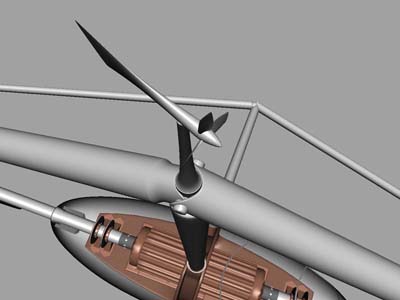

Large scale 8-rotor model wind-vane at an angle showing the direction of the wind



Large scale 8-rotor model in the Mega watt region



Large scale 8-rotor model having an offset angle in the horizontal plane.

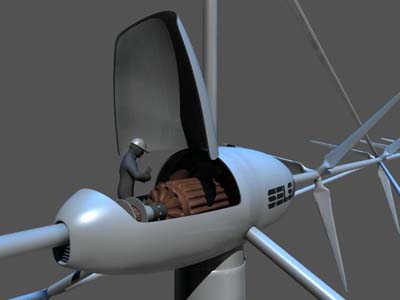

Large scale 8-rotor model with service hatch open for servicing



Large scale 8-rotor model wind-vane at an angle showing the direction of the wind

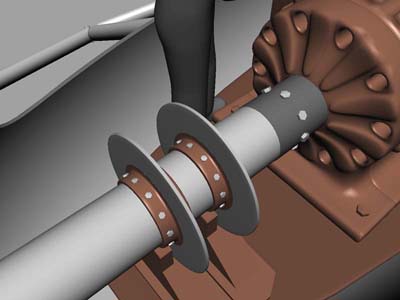

Large scale 8-rotor model disk brakes for stopping the rotors for servicing if needed

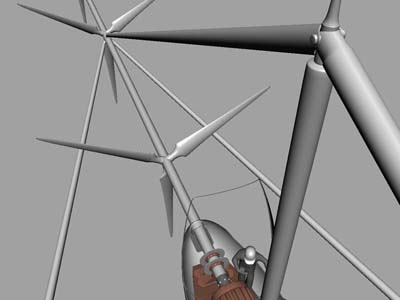

Large scale 8-rotor model structure was carefully thought of for maximum strength and minimal cost
