SuperturbineTM
Link To Article: "10 Times the Turbine" |
above:
SuperturbineTM
ST 2.0
Rated Power: 2 kilowatts at over 30 mph
Power: 2000 Watts @ 30 mph+ Voltage: 12, 24, 48 or 200 Volt DC, for running AC grid-tie inverters, available at no extra charge.
Diameter = 10 feet Length = 12 feet+ Cut-in speed 8 mph
Overspeed Protection: Side-furling using inclined tail pivot
Price: $3000 10-feet diameter,
Please call 714-992-5594 to order - we accept all major credit cards, Paypal, checks, money orders, cash, etc. For international orders we recommend wiring funds directly to our account, please e-mail for wiring instructions.
Buy Now Online! click grey bar button below to order.
Choose voltage, above, then click to place your order automatically. We will arrange shipping, your voltage, tower adapter, provide reliable, leading-brand inverter options for grid-tie or off-grid, & all details by phone, e-mail, etc., after you are in the queue as a customer.
We are happy to wind your generator for any voltage, and fabricate an interface for any tower. We can recommend good tower options.
Local customers can pick up their unit here, or we will deliver personally within 100 miles+. Crates are $100 each, suitable for shipping worldwide. Customer responsible for crating and shipping costs. We use ABF Freight, and other carriers, by land, air, and/or sea, worldwide. We can crate and drop off at depot of customer's choice in the greater Los Angeles area, or arrange shipping in concordance with the customer's wishes, as a separate charge. Customer responsible for all duties, taxes, customs fees, etc.
714-992-5594 Paypal account: Doug@Selsam.com (please e-mail same address after sending funds)
Selsam Innovations |
|

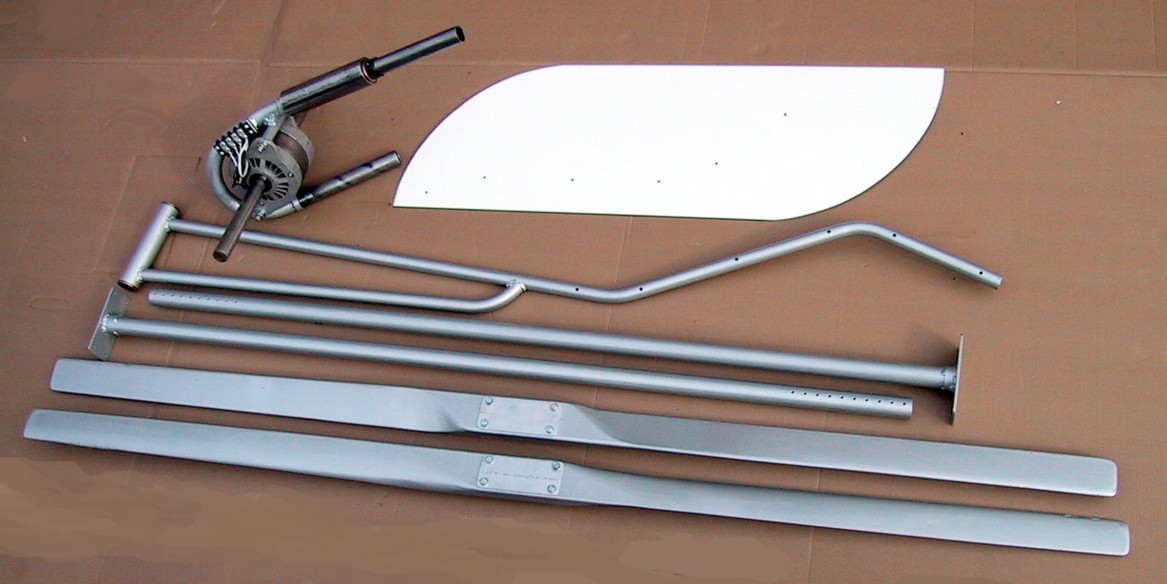

Components: Frame with generator and yaw bearing, driveshafts with hubs, 10-foot propeller blades, pivoting tail boom, tail, tower adapter.
SELSAM ST 2.0
Price: $3000 @ 10-feet - $3200 @ 12 feet, for 24 Volt, 36 Volt, 48 Volt models
Any voltage available at no extra charge, such as 150 Volt, 240 Volt models for inverters (please specify)
Please call 714-992-5594 to order - we accept all major credit cards, Paypal, checks, money orders etc.
Doug Selsam 714-992-5594 Doug@Selsam.com
GRID_TIE INFORMATION: Run YOUR METER BACKWARDS!
Grid-Tie versions are available and they work very well: We recommend and can provide WindyBoy inverter from SMA-America or the Magnetek Aurora from Power-One for grid-tie applications using no batteries (turn your meter backwards).
please see
http://www.SMA-America.com
http://www.SMA.de
http://www.power-one.com call or e-mail for details.
New Product! WindyGirlTM Voltage Limiting Rectifier (VLR) for Windy BoyTM Grid-Tie Inverter! Order Now! Just $199.99

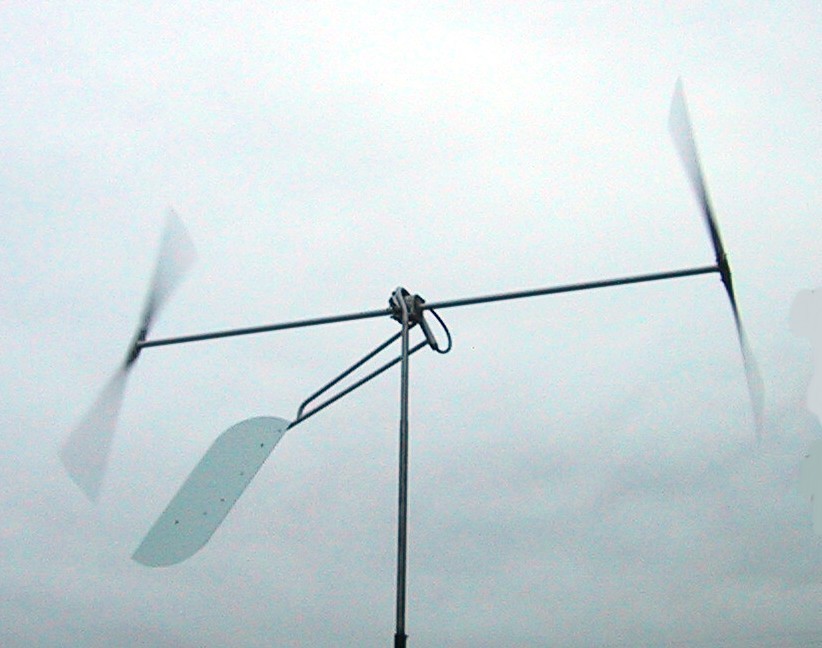

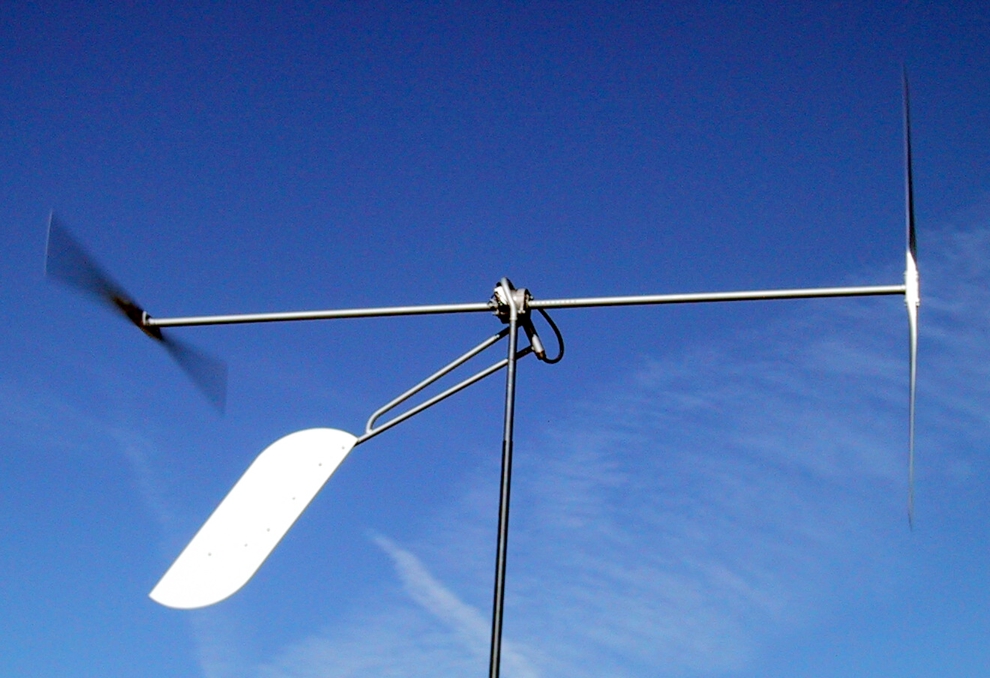

Two Rotors Turn One Generator. The Tail Aims the Turbine, and Pivots for Overspeed Protection. Above is a photo of an experimental unit. The production version that you receive has just 3 wires, very simple.
The SELSAM ST-1.2
|
|

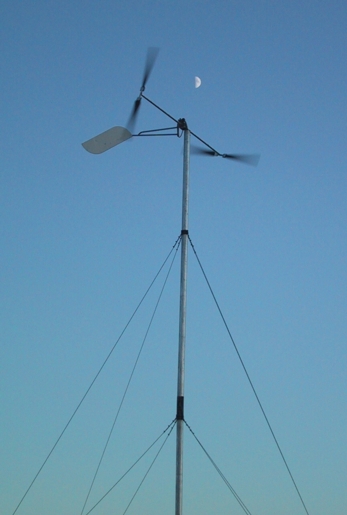

SuperTwinTM SantaMonicaTM Low Wind Speed Version now available (12-foot diameter) $3200 - call for details!
Click to see VIDEO of this SuperTwinTM, with comments by owner on AOL VIDEO:

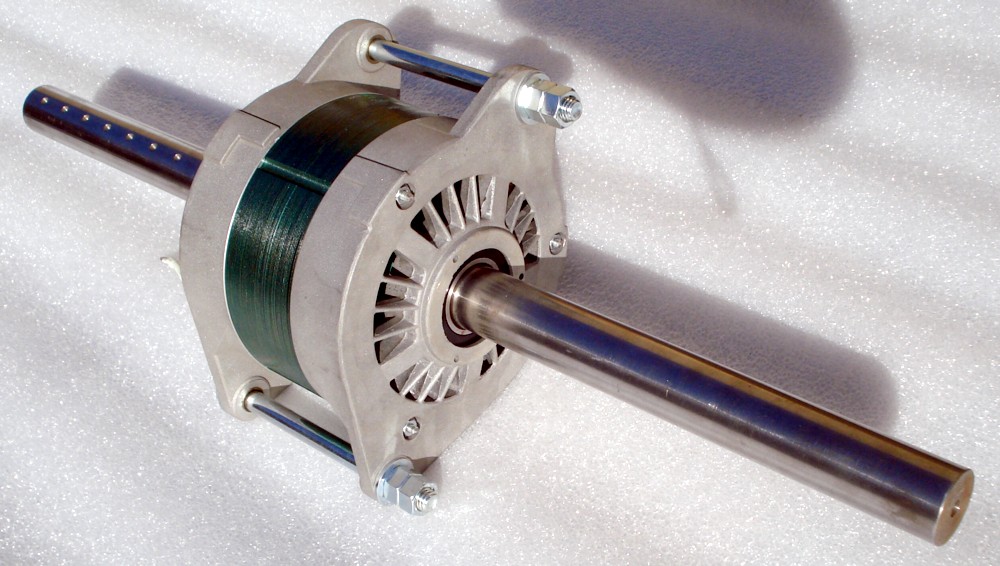

GENERATOR & WIRING:

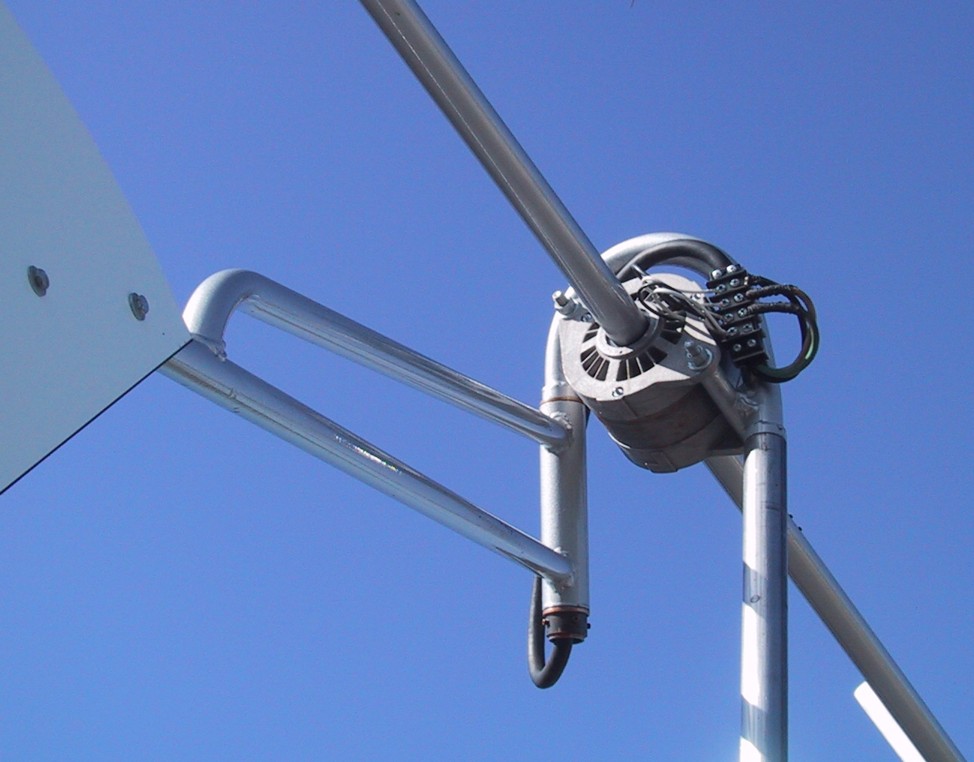

Heavy Duty SuperturbineTM Generator Utilizes Rare-Earth Neodymium Supermagnets, and Sealed, Double-Wide Bearings
Note the three (3) wires: The initial output is called "wild 3-phase AC" power, a sinusoidal 3-phase alternating current that varies in frequency with the wind speed. Most people run 3-phase down the tower using a 3-conductor cable, such as 10-gauge like an extension cord, or heavier cable, depending on voltage. We provide a rectifier that changes 3-phase to DC (+/-). The rectifier can be located at or near the tower base, or near the inverter or battery room, or anywhere in between. A brake switch, to short out all 3 leads of the wild 3-phase coming from the generator, should be installed near the tower base. Braking works best with a short wire run. If you order a Grid-tie voltage we will provide an overvoltage protection device called a WindyGIRL http://www.windygirl.biz
or recommend such a device made by the inverter manufacturer:

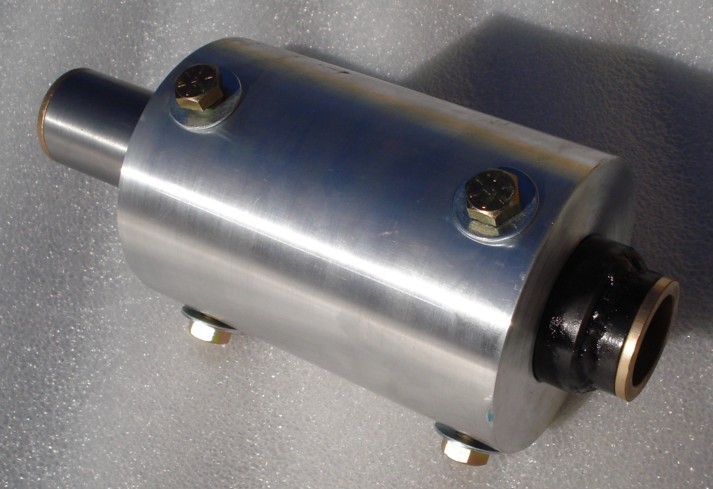

TOWER ADAPTER:
SuperturbineTM Standard Tower Plug fits 5" diameter schedule-40 water pipe. Available on request.

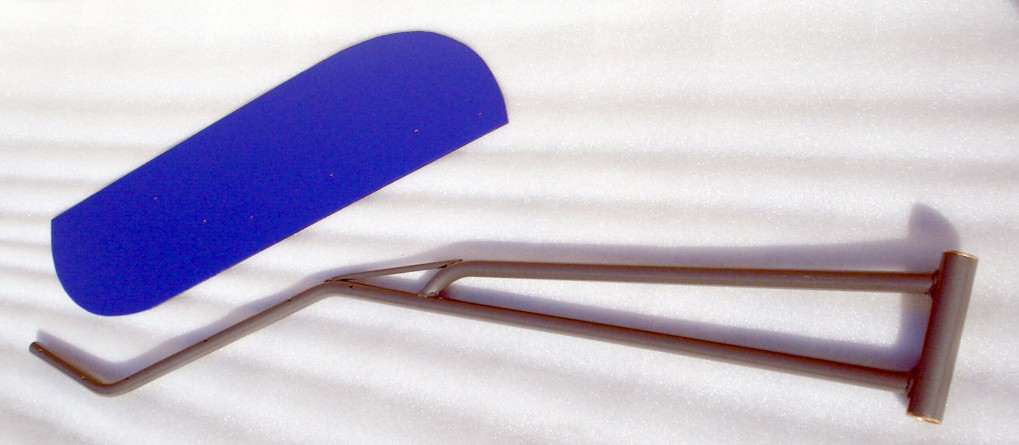

TAIL COLORS:
SuperturbineTM Standard Tail colors: White both sides, blue/green 2 sides, red/yellow 2 sides. Frame is powder-coated
GRID-TIE INVERTERS:
SMA WIndyBOY Inverters available now - please call 714-992-5594 to order!
INVERTER LINKS:
WIndyBOY Grid-Tie Inverter for USA: http://www.sma-america.com/en_US/products/wind-power-inverters.html
WindyBOY Grid-Tie for Europe Inverters & Inverter Protection Box: http://www.sma.de/de/produkte/windenergie-wechselrichter.html
Magnetek Aurora Inverter & Wind Interface Box from Power-One: http://www.power-one.com/renewable-energy/wind-inverters.php
Off-Grid Inverters for Battery-Charging applications: http://www.outbackpower.com/
WindyGIRL Voltage Limiting Rectifier protects GRID-TIE INVERTERS from overvoltage, while rectifying 3-phase AC generator output, to the DC required by the inverter input. We make WindyGIRL in any power level or voltage, for any turbine, any inverter. Call 714-992-5594 to order WIndyGIRL or visit http://www.WindyGIRL.biz

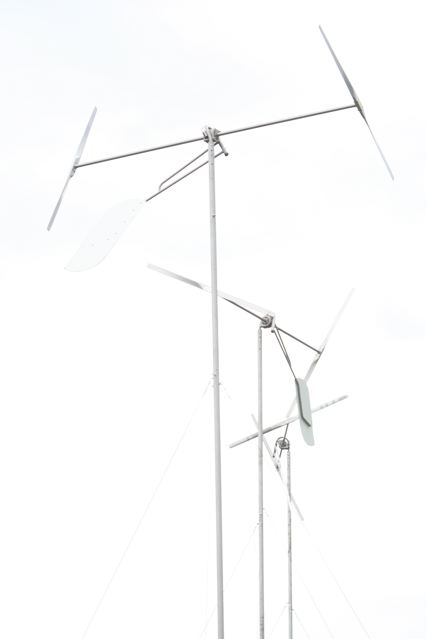

3 in a row in Belgium, 8-foot diameter, grid-tie system through WindyBOY inverters
TOWER OPTIONS
We're happy to fabricate any tower adapter, usually pretty easy. Our yaw bearings (bronze bushings) fit inside a 1.75" inner diameter steel tube. We can ship you one with a 2" O.D. steel tube with a .120 wall, similar to the 2" vertical tube of a Rohn tower top section. You can then weld this tube to what you have. U-Bolts can be used to fix it to a wood utility pole. Insert bronze bushings top and bottom, insert turbine, fix set-screw collar below lower bronze bushing to lock in place
.
We also adapt other companies' tower plugs like Southwest WIndpower. We match the bolt pattern for the Southwest 2.5" water pipe tower insert, with our 2.5" water pipe insert, a 2.5" O.D. tube with a .375" thick wall. We replace Whisper 175's on 5" water pipe towers routinely. Send us your tower plug and we adapt it to our turbine. The SuperTwin is compatible with most small wind turbine towers, including Rohn towers, Skystream towers, water-pipe towers, wood utility poles, etc. We can fabricate a mount to bolt to any hard points. We figure for a max thrust of 1000 lbs. Mounting on inhabited wood structures not advised. Consult an engineer, knowledgeable installer, etc., if you are in doubt of your knowledge and skills. Do your homework. Don't assume anything. Make sure you have access to the turbine when you want access without scheduling a visit from a crane, if possible. Towers are where people start getting hurt, please be careful and do not exceed your capabilities.

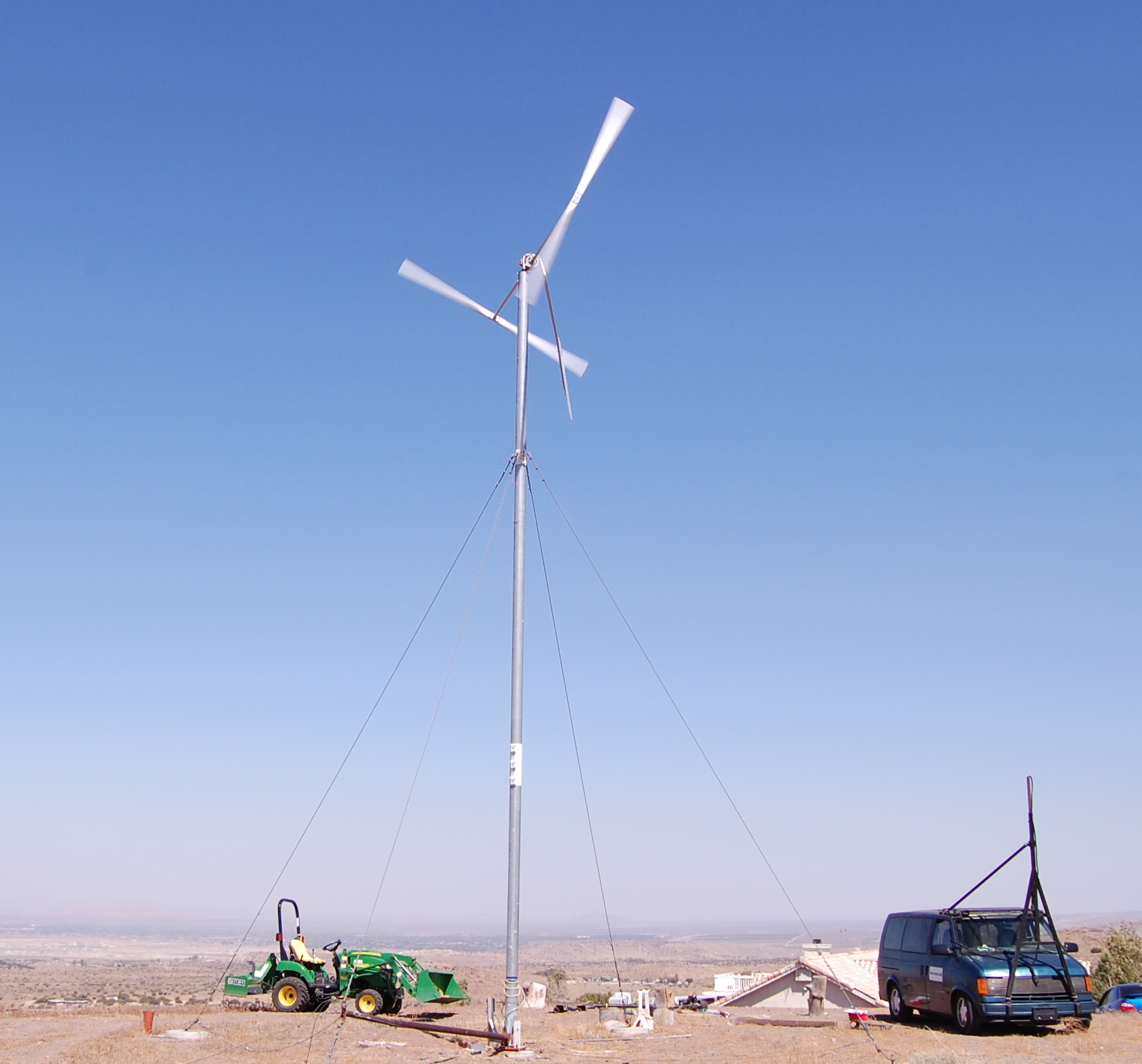

The California SuperTwinTM has 140 square feet (10' diam.) or 200 square feet (12 ' diam.) of swept area. This turbine is a serious power-producer and could potentially power most or all of a whole cottage or small home that conserves well, in a high wind area. Please do not confuse our power rating of 2000 watts with the "fantasy ratings" of many "toy turbines" that you may see elsewhere. We are in a completely different league with regard to making real, serious power. "Swept area" is the first factor that determines output - having dual rotors doubles the swept area. SuperTwinTM generates more power than similar-sized turbines even claim, let alone deliver. Their best-case wishful thinking is our reality, and then some. To Order a SuperTwinTM now, in the USA please call 714-992-5594
SuperturbineTM Based on research funded by |
CEC / SUPERTURBINE RESEARCH LINK: http://www.energy.ca.gov/publications/displayOneReport.php?pubNum=CEC-500-2007-111
Welcome to WindyGirl.Biz |
|
WindyGIRLTM and WindyBoyTM - The perfect combination!
400 Volt version for WindyBoy 1800 U 500-Volt version for WindyBOY 3000-US 600 Volt version for WindyBoy 2500 U , 5000-US, 6000-US, 7000-US 60 Volt version for WindyBoy 1100 LV
WindyGIRLTM is connected between your wind turbine and your WindyBoyTM inverter from SMA-America.
3-Phase in, DC out, 600 Volt WindyGIRLTM model WG6003P protects the SMA WindyBoy 2500 U Grid Inverter
note: We are no longer including the yellow and green wires for manual triggering. Please use a proper disconnect/brake switch as per code.
DC in, DC out, 600 Volt WindyGIRLTM model WG600DC protects the SMA WindyBoy 2500 U Grid Inverter
note: We are no longer including the yellow and green wires for manual triggering. Please use a proper disconnect/brake switch as per code.
WindyGIRLTM Connects, Rectifies, Protects, and Allows manual control of electronic turbine brake
NOTE:Yellow and Green wires for manual braking switch normally left off, unless requested.
SELSAM WindyGIRLTM Patent Pending
VOLTAGE LIMITING RECTIFIER (VLR)
A SuperturbineTM PRODUCT
Purple: 3-phase Input;
Red (+), Black (-): DC Output 60 V, 400 V, 500 V, or 600 V max.
Yellow, Green: Brake Switch
Connect yellow and green to brake turbine
Automatic Braking Applied at (just below) 60, 400, 500, or 600 Volts
WindyGIRLTM 60 Volt DC Voltage Limiting Brake (VLB)
WindyGIRLTM 60 Volt DC (VLB) protects the SMA WindyBoy 1100 Low Voltage Grid Inverter
note: We are no longer including the yellow and green wires for manual triggering. Please use a proper disconnect/brake switch as per code.
WindyGIRLTM protects the SMA Windy Boy Grid-Tie Inverter. This WindyGIRL brakes the turbine to a stop or crawl before the trigger voltage is reached.
Once stopped, the turbine is allowed to restart. This assumes your turbine can be braked electrically. If not, you may damage your turbine but your inverter will be protected. |
Selsam Innovations / Superturbine Inc. / USWINDLABS.com
2600 Porter Ave. Unit B
Fullerton, CA 92833
714-992-5594
http://www.selsam.com
http://www.WindyGIRL.biz
WindyGIRL@SELSAM.com
SuperturbineTM
Your new SELSAM WindyGIRLTM Interface MADE IN USA
Ordering:
WindyGirlTM Interface - I would like to order:
Order by mail: Send check or money orders payable to Factory Direct
2600 Porter Ave. Unit B, Fullerton, CA 92833
Order by phone: Call us anytime at 714-992-5594
SELSAM WindyGIRLTM connects your SELSAM SuperturbineTM (OR OTHER WIND TURBINE) to your Windy BoyTM (or other) Grid-Tie Inverter.
WindyGIRLTM protects the Windy BoyTM from overvoltage (brakes turbine to a stop at just below 60 volts, 400 volts, 500 volts, or 600 volts, depending on model, then allows restart)
If requested: WindyGIRLTM allows manual turbine shutdown (electronically stops turbine - connect to any switch)
note: We are no longer including the yellow and green wires for manual triggering unless requested. We want to keep things simple. Please use a proper disconnect/brake switch.
WindyGIRLTM works with any turbine compatible with the Windy BoyTM (DC voltage operating range 139-400 volts) 500 volt version for Windy BoyTM 3000-US, 600 volt version for Windy BoyTM 2500U, 5000-US, 6000-US, 7000-US easy to use - email or call anytime We make Any WindyGIRL, Any Voltage, Any Power Level, with any extra features such as manual triggering, just for you!
Order your WindyGIRLTM here RIGHT NOW from FactoryDirect ! in California 714-992-5594
SELSAM WindyGIRLTM will fit into a variety of enclosures for both indoor and outdoor placement
You CAN connect to the power grid, reduce peak power use, turn your meter backwards, and lower your electric bill!
ORDER ONLINE: WindyBOYTM Inverter AND WindyGirlTM Voltage Protection
- I would like to order:
IMPORTANT NOTE: WindyGIRL is intended for turbines that can be electrically braked from full power to a stop. A long distance of wire from the turbine may affect braking performance of any attempt to stop the turbine electrically. A very long run of thin wire between a brake switch and the turbine may in some cases allow the turbine to keep running even when the leads are "shorted out" (brake is on) since the length of wire itself has enough resistance to present an operating voltage to the turbine. Consider this when placing your WindyGIRL since it also acts to brake the turbine electrically. Therefore consider limiting the length of your wire run, using very thick wire, and/or placing the WindyGIRL reasonably close to the turbine for best braking results. Choose an inverter that is big enough to handle your turbine. We want to hear your experience with WindyGIRL so we can continue to make it the best it can be. Order your WindyGIRLTM now! Click below or Call SELSAM SuperturbineTM at 714-992-5594 |
CUSTOM-DESIGN AND MANUFACTURE OF WindyGIRLTM UNITS FOR YOUR SPECIAL USE:
WindyGIRL Voltage Limiting Rectifier protects GRID-TIE INVERTERS from overvoltage, while rectifying 3-phase AC generator output, to the DC required by the inverter input. We design and manufacture WindyGIRL in any power level or voltage, for any turbine, any inverter. Custom orders are normal for us. Call 714-992-5594 to order WIndyGIRL or visit http://www.WindyGIRL.biz
Order by mail: Send check or money orders payable to Factory Direct
2600 Porter Ave. Unit B, Fullerton, CA 92833
Order by phone: Call us anytime at 714-992-5594
Visit the SELSAM ST 1.2 American Twin Dual-Rotor 1 kW SuperturbineTM website!
http://www.DualRotor.com
Visit the incredible and futuristic SELSAM Superturbine website! http://www.SELSAM.com
The SELSAM ST-1.2 American Twin SuperturbineTM is protected by U.S. Patents 6616402, 6692230, 7008172, 7063501 other U.S. and International patents, and patents pending. SuperturbineTM is a registered U.S. Trademark
Visit the SELSAM ST 1.2 American Twin Dual-Rotor 1 kW SuperturbineTM website! http://www.DualRotor.com
Visit the incredible SELSAM Superturbine website! http://www.SELSAM.com
SuperturbineTM
SuperAlternatorTM
the SuperturbineTMSuperAlternatorTM
SUPERTURBINE PMA Alternator Wind Turbine Generator 2kW+
High Voltage, Low Wind Speed, Low Cogging : Full Power of 2 kW at 600 RPM, depending on current draw & voltage of load

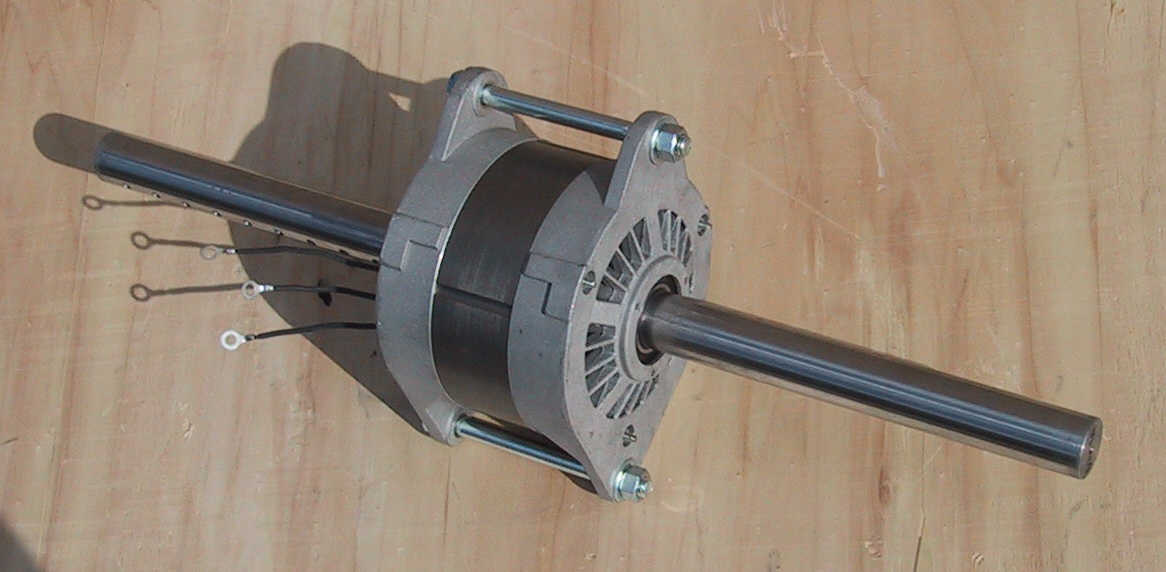

SUPER-ALTERNATOR! (2 kW High-Voltage Permanent-Magnet Alternator)
The MOTHER of all PMA's (Permanent Magnet Alternators)
Shown next to a Delco 10-Si alternator for comparison
35 mm diameter driveshaft, 5.5" long projection forward from case
Attachment bolts: 1/2" diameter
Inside Distance Between mounting ears of case: 4.130"
Output: 3-Phase
Alternators are named for their nominal voltage at cut-in speed of 8 mph for a 12-foot diameter rotor
Output Voltage vs RPM for the "240-Volt" model:
0.8 Volts per RPM
12 Volts @ 16 RPM
40 Volts @ 50 RPM
80 Volts @ 100 RPM
200 Volts @ 250 RPM
400 Volts @ 500 RPM
500 Volts @ 625 RPM
600 Volts @ 750 RPM
This Alternator is the perfect size for an 8-foot to 12-foot diameter Wind Turbine rotor.
The voltage range is perfect for use with a WindyBOY Grid-tie inverter, also available through this seller.
The WindyBOY requires over-voltage protection, (WindyGIRL) also available through this seller.
You can turn your meter backwards using your own home-built wind turbine, based on this SUPER-ALTERNATOR!
(See below for description of WindyBOY inverter and WindyGIRL over-voltage protection, also available from this seller.)
Three output wires deliver 3-phase electricity. with both voltage and frequency proportional to RPM.
This SUPER-ALTERNATOR is WAY MORE POWERFUL than the PMA's you are used to seeing on E-Bay.
The Superturbine(R) Alternator weighs a whopping 32 LBS!!!
compare to PMA's based on the Delco 10-si series, weighing in at a mere 10 lbs.
This SuperTurbine(R) Super-Alternator is good for sustained output of 2000 watts, on a tower with wind blowing thru.
For ground-based use, consider a cooling fan.
Ths alternator is capable of 10 kW output in short bursts.
But the factor limiting sustained output of any alternator or motor is temperature, which can quickly start to climb, ending in a burnt-out stator.
We will not be responsible for a burnt-out stator, since this is a SUPER-BEEFY alternator, well-proven for hours of sustained full output.
Since we cannot control what you do with it, you gotta see if it is getting hot and take steps to prevent overheating, cause that is just the name of the game in wind energy.
Perfect for VERTICAL-AXIS Machines, which often turn slower and have trouble reaching useful voltages at low RPM.
We can make you an alternator wound for ANY voltage range, all you gotta do is ask.
Made in USA. Highest quality materials and components, nothing to wear out.
If properly loaded, this machine should last forever.
Extra-heavy-duty sealed bearings can be replaced, but we have never worn out a bearing yet, in years of use, in the harshest arctic and desert environments!
90 Day warranty parts & labor for defects in materials or workmanship.
This sale is FOR THE ALTERNATOR (PMA) ONLY!
You will need a rectifier to turn the 3-phase output to DC, if you want DC output.
Call and we can set you up with a rectifier: 714-992-5594
Weight: 35 LBS.
Shipping Free in the U.S. & Canada!!!
We ship immediately!
More info: 714-992-5594
Good Luck and Thanks for your business!
The SuperAlternator, using High Temp Neodymium SuperMagnets, the most powerful PMA on the market, outweighs and outpowers 3 Delco alternators.

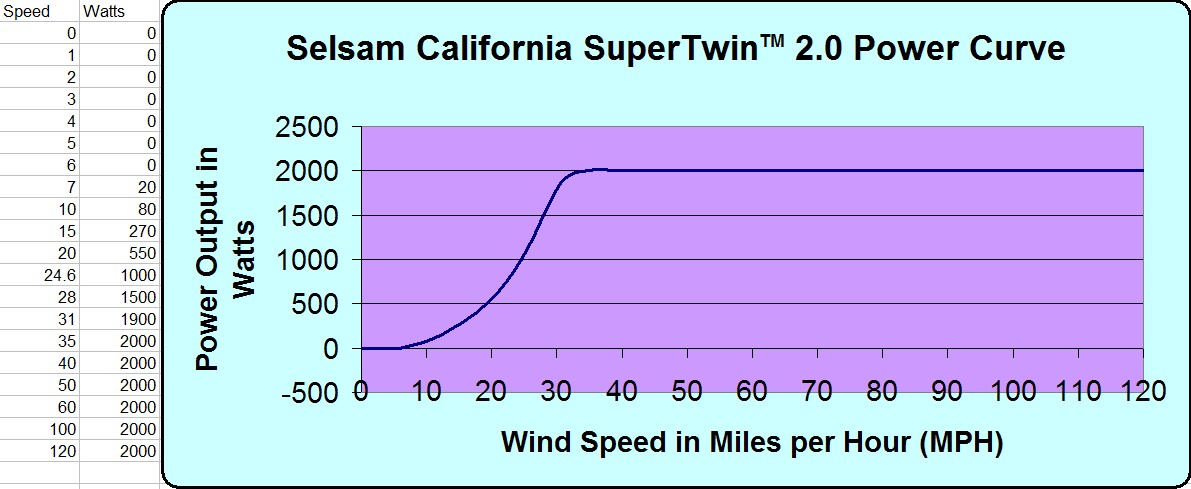

You can expect the above power curve using a 12-foot diameter rotor that has furling or other overspeed protection
SuperturbineTM Your new SELSAM SuperAlternatorTM is MADE IN USA
Shipping free in the U.S., Canada. Please call first for overseas orders.
|
||
|
Order by mail: Send check or money orders payable to Selsam Innovations
2600 Porter Ave. Unit B, Fullerton, CA 92833
Order by phone: Call us anytime at 714-992-5594
